Crash-Rated Wedge Barrier Systems Installed in OKC
If a crash-rated perimeter is needed, Fence OKC offers a variety of wedge barrier models and selections. Fence OKC can offer both “in-ground” and “surface-mounted” options for wedge barriers. There are numerous models to pick from, each with a unique crash rating.
In addition to military bases, high-security zones, private corporate facilities, industrial manufacturing facilities, utility installations, etc., wedge barriers can be helpful in these locations.
Contact a Fence OKC specialist for assistance with your needs for a wedge barrier system and other Oklahoma access control systems.
Lic# AC440964
Call 405-778-1545 for a free consultation from Fence OKC.
What is a Vehicle Wedge Barrier?
Wedge or pop-up barriers are a form of barricade used in high-security establishments as an active vehicle barrier (AVB) system.
These dynamic security barriers prevent vehicles from passing through crucial places like entry gates or tunnels for access control.
When raised and triggered, the configuration of wedge barriers resembles solid blocking plates or fingers that can be raised quickly or lowered using hydraulic or electrical or hydraulic systems. They lie flat on the road when not in use to provide easy passage for moving cars.
Other wedge barriers may be used in parking lots and automobile rental facilities to stop ordinary traffic. Vehicle wedge barriers come in various configurations; they can be buried, put above ground, or transported.
Crash-rated wedge barriers are widely employed for the uses specified in their crash rating criteria for anti-ram or counter-terrorism.
These barriers guard off-limits areas and high-security locations, including data centers, military and governmental buildings, nuclear power plants, sports arenas, atomic power plants, and embassies.
Anti-Ram Wedge Vehicle Barriers
Gibraltar’s industry-leading G-2000 Series and G-2500 Wedge Barriers provide long-lasting, dependable access control for facilities across multiple sectors.
Designed for durability and low-maintenance performance, each wedge barrier is supported by ongoing electro-mechanical testing to help ensure reliable operation and extended service life.
As a global leader in anti-ram perimeter security, Gibraltar delivers some of the most durable and efficient wedge barrier systems available today.
G-2000 Series Wedge Barriers

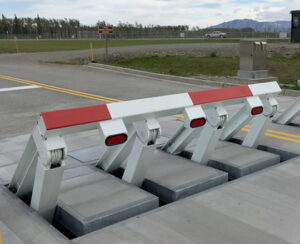

Gibraltar G-2000 Wedge Barrier is a crash-tested vehicle barrier system designed for secure access control at high-security entry points.
The system provides strong vehicle stopping power and is certified to ASTM F2656-07 M50 P1 standards, making it suitable for critical facilities such as military bases, airports, refineries, power plants, and water treatment sites.
Gibraltar G-2000 Wedge Barriers are available in electro-mechanical or hydraulic configurations and are designed for long-lasting, low-maintenance performance.
Gibraltar G-2000 Wedge Barrier Features & Benefits
- ASTM F2656-07 Certified
- M50 P1 Crash Rating
- Shallow Foundation Design
- Electro-Mechanical Options
- Hydraulic Powered Options
- Emergency Fast Operation
- Low-Maintenance Design
- Available in 8’ to 14.5’ Widths
G-2500 Series Wedge Barriers

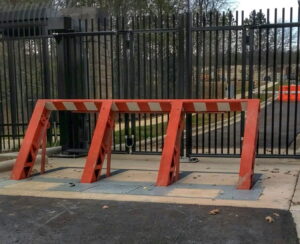

Gibraltar G-2500 Wedge Barrier is a next-generation electric vehicle barrier system designed for high-security access control points.
The system is certified to ASTM F2656-20 M50 P1 standards and delivers powerful vehicle-stopping performance in a compact, low-maintenance design.
Gibraltar G-2500 Wedge Barriers operate without actuators, springs, or pneumatics, reducing wear points while offering fast emergency deployment and reliable long-term performance.
Gibraltar G-2500 Wedge Barrier Features & Benefits
- ASTM F2656-20 Certified
- M50 P1 Crash Rating
- 100% Electric Operation
- No Actuators or Lift Assists
- Sub-1.5 Second EFO
- IP68 Rated Brake Motor
- Battery Backup Available
- Available in 8’ to 14’ Widths
G-5000 Series Anti-Ram Crash Gates
Available in multiple widths, foundation types, operating configurations, and opening styles, the G-5000 Series is designed to provide customizable, high-security access control.
Each G-5000 Anti-Ram Crash Gate is engineered, crash-rated, and certified to help prevent unauthorized vehicle access to sensitive and high-security areas.
About the G-5000 Series
Gibraltar’s G-5000 Series crash-rated gates are available with engineered ratings from M30 to M50, with M50 options designed to stop a 15,000-pound vehicle traveling up to 50 mph.
This level of stopping power makes the G-5000 Series a strong security solution for military bases, airports, power plants, water treatment facilities, chemical plants, and other sensitive sites.

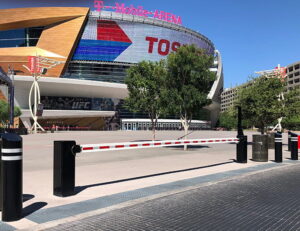

Built for Anti-Terrorism and Force Protection (ATFP) and Hostile Vehicle Mitigation (HVM) needs, the G-5000 Series helps protect personnel, vehicles, property, and critical assets from unauthorized vehicle access.
Crash Gate Configurations

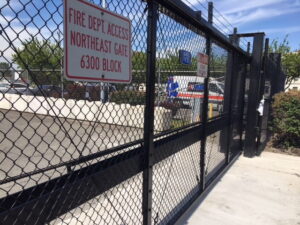

The G-5000 Series Anti-Ram Crash Gates are available in multiple access configurations, including sliding V-track, sliding cantilever, double-leaf swing, and single-leaf swing models.
Clients can choose between standard and shallow mount options, enabling efficient installation with less disruption to existing utilities.
Each crash gate can be configured for electric or manual operation and can be paired with multiple fascia options, including Gideon™ Fence Systems, chain link, and more.
G-5500 Anti-Ram Sliding Crash Gate

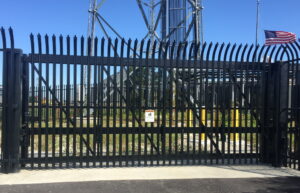

Gibraltar G-5500 Anti-Ram Crash Gate is a high-security sliding gate system designed for serious force protection and asset protection.
The system is tested and certified to ASTM F2656-07 M50 P2 standards, protecting a 15,000-pound vehicle traveling at 50 mph.
G-5500 Crash Gates are ideal for high-risk checkpoints, military sites, and sensitive industrial facilities that require strong protection from high-speed vehicle threats.
Gibraltar G-5500 Anti-Ram Crash Gate Features & Benefits
- ASTM F2656-07 Certified
- M50 P2 Crash Rating
- High-Speed Vehicle Protection
- Welded Tube Steel Framework
- Wheel/Track Guiding System
- Mechanical & Manual Operation
- Immediate Reverse Operation
- Ideal for High-Security Checkpoints
Optional Features
- Remote Control Panel Options
- Custom Control Panel Configurations
- Visual Deployment Indicators
- Audible Warning Alarms
- Integrated Traffic Signals
- Battery Backup System
- Fence-Matching Design Options
Modular vehicle barriers

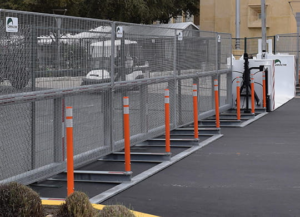

The system is available in 5’, 10’, and 20’ units that can be linked together for added stability, impact resistance, and flexible site coverage.
Gibraltar Modular Vehicle Barriers are easy to deploy, customizable, and certified to ASTM F2656 standards for reliable protection at events, facilities, and temporary security zones.
Gibraltar Modular Vehicle Barrier Features & Benefits
- Crash-Tested Barrier System
- ASTM F2656 Certified
- M30 P2 Rated Option
- 5’, 10’, and 20’ Units Available
- Pedestrian Archway Options
- Easy Deployment Design

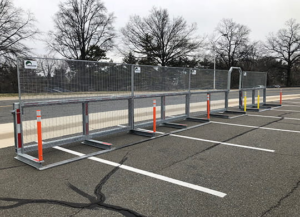

- Anti-Pedestrian Fence Panels Available
- Custom Finish Options Available
How a Vehicle Wedge Barrier Works
One type of active vehicle barrier is a wedge vehicle barrier.
They pivot from the pavement’s surface, forming a wedge shape to obstruct traffic flow. Electric or hydraulic systems raise and lower this blocking finger or plate in seconds.
Below is an excellent example by Ameristar of how a vehicle wedge barrier works.
Benefits of a Wedge Barrier System
Wedge barriers are the most effective anti-ram solutions for halting various vehicles.
Their stiff, reinforced construction protects strategic, high-security institutions like government buildings, military bases, nuclear installations, and susceptible public infrastructures like stadiums, parking lots, and corporate offices.
Additionally, hydraulic and electric wedge barriers are simple and quick to use.
They can be deployed in under five seconds, providing fast action in an emergency. This is essential since getting help is critical in a crisis. A wedge barrier smoothly merges into the road when not used. It is not at all intrusive as a result.
There are typically no limitations on the vehicles that may pass over it because of the solid design and high axle load, which can carry tremendous weight.
Schedule a free estimate
Keep Critical Infrastructure Safe
Advantages of a Wedge Barrier System
Many wedge barriers may be installed in any temperature zone and need thin foundations (often 16 to 20 inches).
In addition to being made of materials generally resistant to corrosion, wedge barriers are incredibly durable and require little upkeep.
Most barriers have LED lights that flash when activated to alert drivers to halt. As a result, stoplight installation is no longer necessary.
Other advantages and benefits of using vehicle wedge barriers include the following:
- High vehicle impact ratings for better asset protection
- Preassembled wedge barriers are easy to deliver and install
- Low service and maintenance
- Quick operation in case of emergency
- Great for shallow foundation installation
- Heavy vehicles may pass through when the wedge is closed
- Ridged construction materials
- You may install caution lights on the barrier
- Battery backups and handpumps are available for manual activation
- They may be installed in all climates
Types of High-Security Wedge Barriers Available in Oklahoma
Electric and hydraulic are the two high-security wedge barriers Fence OKC provides in Oklahoma City, Oklahoma, and the surrounding area.
One of the most essential choices you’ll need to make when using a wedge barrier to stop unwanted cars from entering your property is whether to employ an electric or hydraulic system.
Both of these vehicle wedge barriers have benefits and drawbacks; here are some examples:
Electric Vehicle Wedge Barriers
Electric wedge barriers perform mainly in unusual places where hydraulic device use is prohibited.
- Below ground: To prevent water incursion into the actuator, the actuators that drive the barrier should be adequately rated to guarantee sustained functioning with proper drainage.
- Temperature: Electronic systems are unaffected by temperature, unlike hydraulic ones.
- Speed: Electrical wedge barriers allow for the production of different rates, giving you more control over how rapidly the unit rises. The ramp may be raised swiftly but lowered more slowly thanks to the variable speed, which is better for the system.
- Required Maintenance: Electronic equipment requires less maintenance than other types of equipment.
Hydraulic Vehicle Wedge Barriers
The wedge barrier hydraulic pumping units (HPU) are located remotely and connected to the unit via hoses or steel pipes. Local single-phase or three-phase power sources are used to supply energy.
- Buried lines: In hydraulic wedge barriers, the engine is above ground in a secure container located elsewhere, but the lines are buried.
- More Power: Hydraulic power units are more powerful and produce a lot of pressure; thus, they exert a more potent force.
- Maintenance: HPUs are renowned for being dependable and having minimal maintenance difficulties. Since many hydraulic controllers may be operated manually or using various vegetable oils, the environmental problem is moot.
Fence OKC
Vehicle Wedge Barriers = Asset Protection
Security Wedge Barrier Service, Repair, and Maintenance
Fence OKC installs vehicle wedge barriers and provides repairs, service calls, and warranty work.
Is Your Wedge Barrier System in Need of Repair?
We provide repair services, designing and installing crash-rated wedge barrier systems.
In reality, we can assist you in fixing your present system, servicing it, or giving it a new, enhanced function or appearance.
In general, we can help with whatever your needs are!
We Only Use High-Quality Products
When you use Fence OKC, you can be confident that you are getting the most outstanding service and value for your money.
You will also receive top-quality items in the business.
We only utilize trusted brands to ensure that your barrier system stands the test of time and satisfies all your requirements.
Other Access Control Systems Available in OKC
Fence OKC also installs various access control systems to protect your commercial or industrial property.
|
|
Wedge Barrier FAQs
See the answers to the most frequently asked questions about crash-rated bollard installation from our valued customers in Central Oklahoma.
What is a vehicle wedge barrier?
A wedge barrier is a security device that prevents unauthorized vehicles from passing through a specific point.
How quickly does a wedge barrier operate?
The average time to raise and lower a wedge barrier is two to five seconds.
How do vehicle wedge barriers work?
They rise vertically to block vehicle access and retract into the ground to allow authorized passage.
What is the average width of a wedge barrier?
The standard width is between eight and fourteen feet wide.
What is the average depth of a crash-rated wedge barrier?
The average depth is approximately two feet deep.
Where are vehicle wedge barriers commonly used?
They are often used at entrances to secure facilities, government buildings, and military installations.
Can wedge barriers integrate with other access control systems?
They can be integrated with access control systems, surveillance cameras, and other security measures.
We Can Help With Vehicle Wedge Barrier Installation, Service, or Repair in Oklahoma
Regarding wedge barrier installation, service, or repair. Trust the experts at Fence OKC. We are one of the few fence contractors licensed in Oklahoma to complete your project—access control license #AC440964.
We have over ten years of experience with vehicle wedge barrier installation for commercial fence projects in Oklahoma.
We are confident we can give you the exceptional service and outstanding quality you deserve. Furthermore, we have the largest selection of materials, styles, and options for your project.
If you want to discuss a vehicle wedge barrier project, please contact us for a free quote.
If you want a more personal experience, call us at (405) 778-1545 to schedule a free consultation. We look forward to serving you.
Check out our Access Control services page for some other Oklahoma Security Ideas.
Vehicle Wedge Barriers
Get a free wedge barrier installation, service, or repair quote.
Vehicle Wedge Barrier Installation in Oklahoma
Our wedge barrier installers aren’t just skilled technicians—they’re artists with their craft.
